Documentation for Online Manifest Model
Definition Type: ComplexType
Name: X509DataType
Namespace: http://www.w3.org/2000/09/xmldsig#
Containing Schema: xmldsig-core-schema.xsd
Abstract

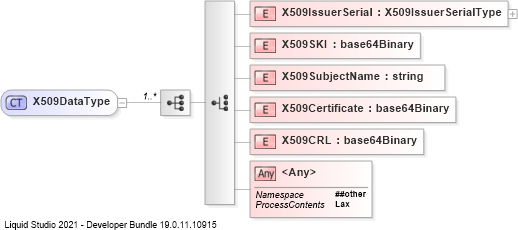

Collapse XSD Schema Diagram:
Drilldown into X509CRL Drilldown into X509Certificate Drilldown into X509SubjectName Drilldown into X509SKI Drilldown into X509IssuerSerialXSD Diagram of X509DataType
Collapse XSD Schema Code:
<complexType name="X509DataType">
    <sequence maxOccurs="unbounded">
        <choice>
            <element name="X509IssuerSerial" type="ds:X509IssuerSerialType" />
            <element name="X509SKI" type="base64Binary" />
            <element name="X509SubjectName" type="string" />
            <element name="X509Certificate" type="base64Binary" />
            <element name="X509CRL" type="base64Binary" />
            <any namespace="##other" processContents="lax" />
        </choice>
    </sequence>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
X509IssuerSerial dsig:X509IssuerSerial (1) (1)
X509SKI dsig:X509SKI (1) (1)
X509SubjectName dsig:X509SubjectName (1) (1)
X509Certificate dsig:X509Certificate (1) (1)
X509CRL dsig:X509CRL (1) (1)
<xs:any> Allowed namespace: '##other' (1) (1)
Collapse Derivation Tree:
Collapse References:
dsig:X509Data
